Detay Bilgi

Features:	Gentle Mixing, No Dead Zones, Easy to Clean	Mixing Method:	Conical
Material:	Stainless Steel	Mixing Power:	1-50 kW
Type:	Industrial Mixing Equipment	Application:	Food, Chemical, Pharmaceutical Industries
Discharge Method:	Pneumatic Valve	Temperature Control:	Thermostat
Safety Features:	Emergency Stop Button	Control System:	PLC
Warranty:	1 year

Ürün Açıklaması

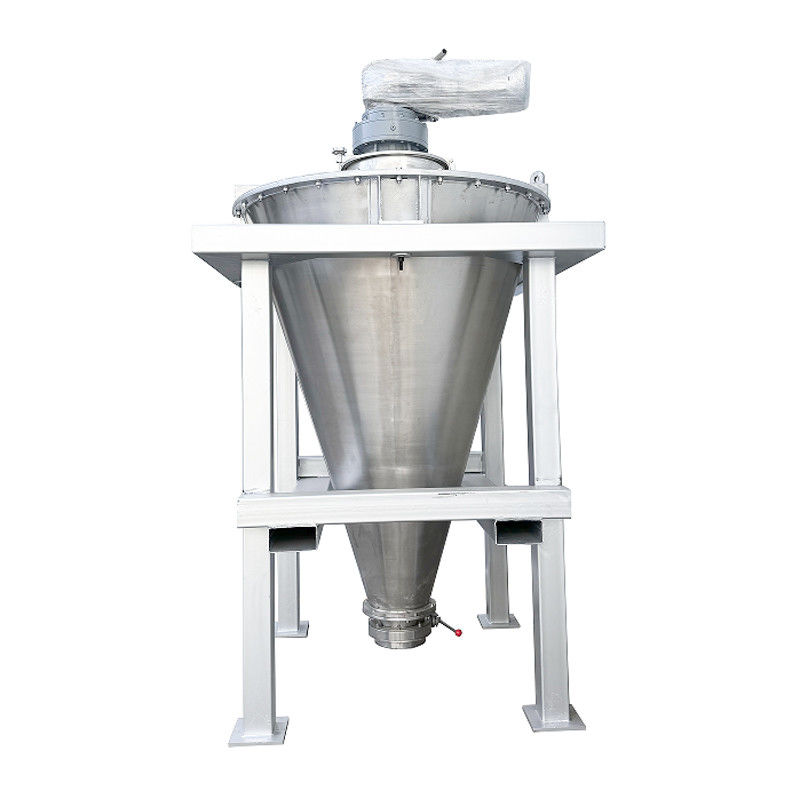

Conical mixer

Product Description
The conical mixer is a common mixing device. Its main body is conical in structure and usually consists of a conical container and internal stirring components (such as a helical agitator). During operation, the rotation of the stirring components causes the materials to perform both circular motion and up-and-down movement along the conical wall within the cone, thereby achieving uniform mixing of different materials. It features high mixing efficiency, good uniformity of mixing, and convenient unloading. It is widely used in the powder or granular material mixing operations in industries such as chemical engineering, food, medicine, and building materials.

Working Principle
The conical mixer is mainly composed of a conical cylinder and an internal spiral agitator. During operation, the agitator lifts the bottom materials along the spiral surface to the cone top while rotating on its own axis, and at the same time, it rotates around the center axis of the cone, driving the materials to move in a circular motion. This causes the materials to form a "rise - diffusion - fall" convection cycle within the cone. Combined with the shearing and squeezing effect of the blades, different materials can achieve efficient mixing from local concentration to random and uniform distribution in the complex motion. It features a compact structure, high mixing uniformity, and convenient unloading. It is widely used in the powder or granular material mixing operations in industries such as chemical engineering, food, and pharmaceuticals.

Product features
1. Uninterrupted design: The conical container eliminates bottom accumulation and has minimal material residue.
2. Efficient mixing: The combined rotation and revolution motion increases the mixing efficiency by 30%.
3. High uniformity: The uniformity reaches over 99%, suitable for industries with high requirements such as medicine and food.
4. Wide material compatibility: It can adapt to different densities and particle sizes of materials, and does not easily damage the particles.
5. Flexible customization: Supports special functions such as vacuum, explosion-proof, and temperature control.
6. Easy maintenance: Quick discharging, minimal residue, simple structure and easy maintenance.
7. Suitable for multiple industries: Covers fields such as chemical engineering, food, and medicine, and the material meets industry standards.

Product Parameters

Model	VBDS-180	VBDS-300	VBDS-500	VBDS-1000	VBDS-2000	VBDS-3000
Power(kw)	1.1	1.1	2.2	4	7.5	11
Capacity (kg/batch)	40	60	100	200	400	600
Total volume(m³)	0.18	0.3	0.5	1	2	3
Mixing time(min)	4~8	6~10	6~10	6~10	6~10	6~10
Speed(r/min)	12	12	12	10	10	8

Production line schematic diagram
Configuration A: Manual feeding to the feeding station → Vacuum feeder suction feeding → mixing → mobile silo.

Configuration B: Bucket lift feeding → Mixing → Transition silo → packaging machine.

Conical Mixer for Uniform Dispersion of Powder and Granular Materials Simple Structure and Low Energy Consumption 0

Details Lmages

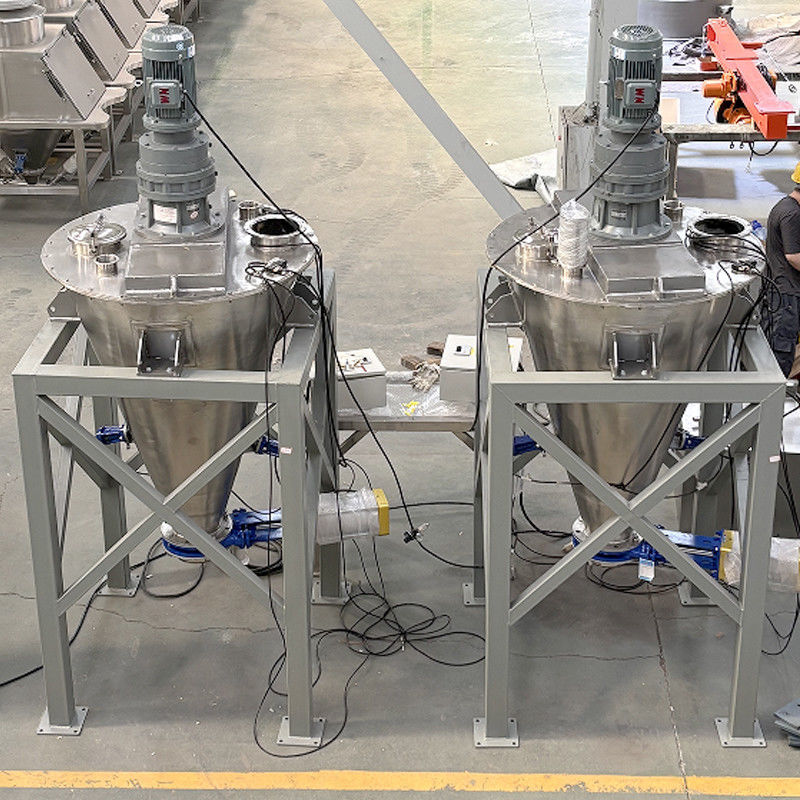

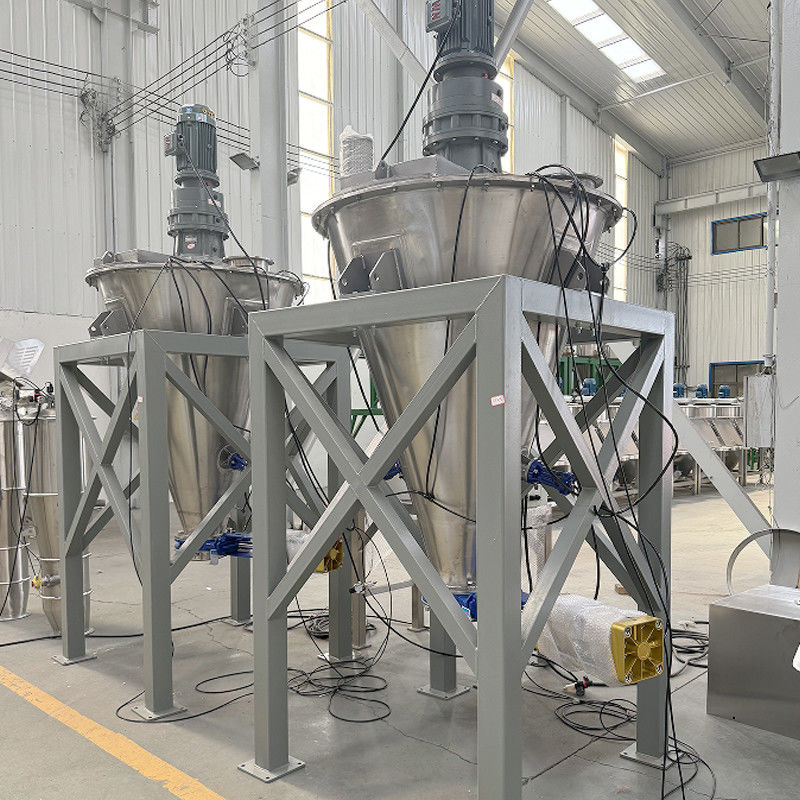

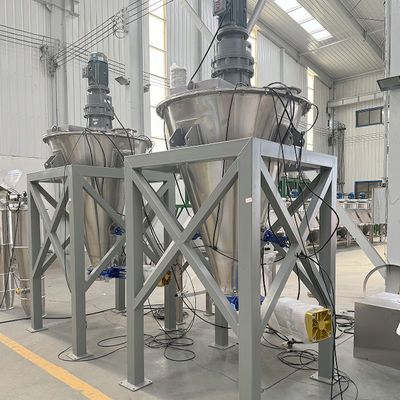

Product Shows

Packing & Delivery

Why Choose Us

About us

Conical Mixer for Uniform Dispersion of Powder and Granular Materials Simple Structure and Low Energy Consumption 9

Company Profile

We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.

Etiket:

Place of Origin:	CHINA
Marka adı:	EVERSUN
Sertifika:	ISO,CE
Model Number:	VBDS

Minimum Order Quantity:	1set
Fiyat:	pazarlık edilebilir
Packaging Details:	Standard export wooden cases
Delivery Time:	within 7-15 work days
Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability:	5000set/year
